Flywheel Single-Station Press

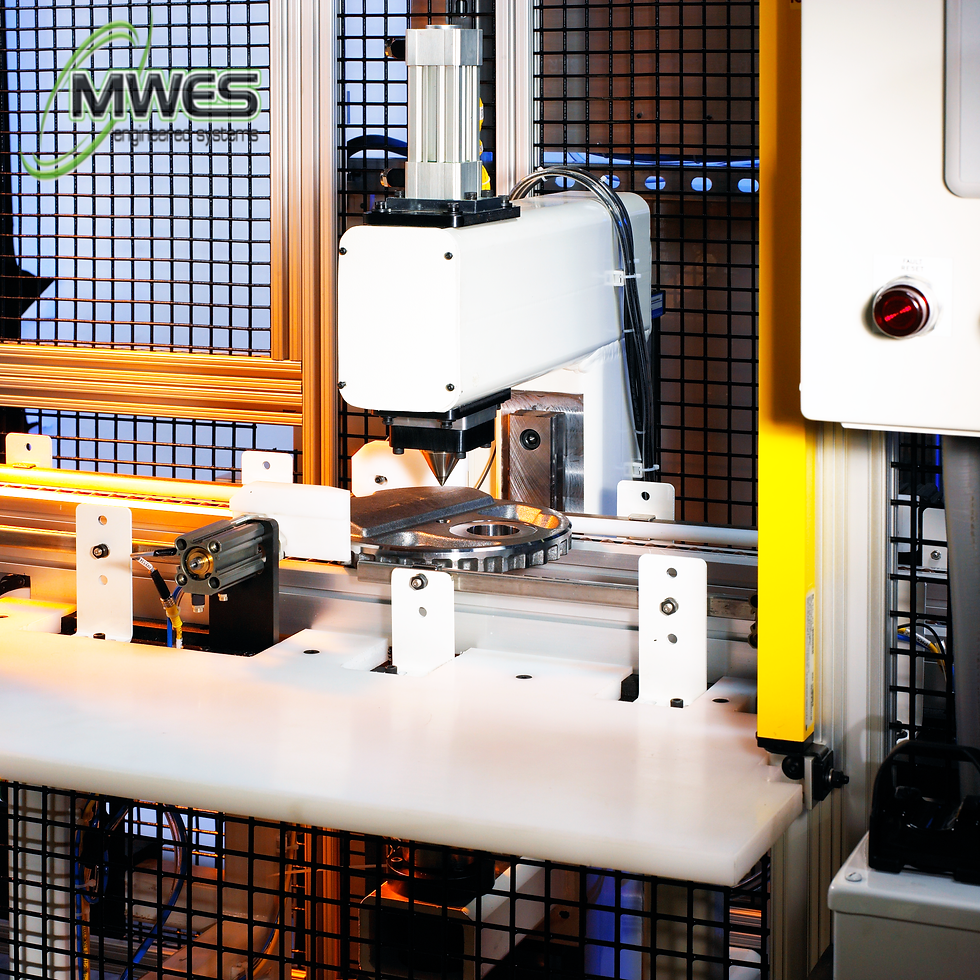

Midwest Engineered Systems designed a semi-automated assembly press for individual flywheels to be assembled every 50 seconds or less
The Challenge
​
Automatic flywheels introduction (from part washer)
-
Bearing Race manually loaded
-
Press cycle manually initiated
-
Press verification
-
Parts must then be automatically transported to unload station
The Solution
The following methods, components and technologies were implemented and integrated to provide a comprehensive solution:
-
Two strand chain conveyor integrated to parts washer conveyor for automatic flywheel introduction
-
Automatically locate part for pressing on centers
-
Provide access to manually load bearing race
-
Hydraulic pressing station using Promess force load monitoring system for press verification feedback
-
Automatic part transportation to part flipping station
-
Automatic part flipping for manual operator unloading
Impact to the Customer
-
Part rate of 1 part assembled every 50 seconds or less
-
Parts are semi-automatically assembled
-
All pressing is verified using Promess force load monitoring technology
-
Bad parts are automatically identified
Technologies Used in This Application
